Mini Pouch Packing Machine

WH3-220H
Horizontal Premade Pouch Packing Machine
Function: The WHH series horizontal premade pouch packing machine is designed for filling and sealing various materials
Application: It works with flat pouches, stand-up pouches, and M-type pouches.
Material: Liquids,Powders,Granules
Bag width： 80 to 220mm
Filling range： 10 to 2000g
Packaging speed： 10 to 25 bags per minute
Get a inquiry
Download
Description
Specifications
Video
Packaging Process
Industry
Description

This horizontal premade pouch packing machine is compact and has a smaller production capacity, with a speed of 15-20 bags per minute. It is ideal for small-scale companies or startups transitioning from manual production to automated processes.

Specifications
Model WH3-220H
Working stations 3 stations
Name horizontal pouch packing machine, mini pouch packing machine
Bag size W: 80-220mm L: 100-300mm
Packing speed 10-25 bags/min
Filling range 10-2000g
Dimension 1300mm x 800mm x 1200mm
Weight 300 KGS
Votage 220V, single phase
Power 3KW
Air consumption 0.9m2/min
Work flow: bag loading, flip, bag opening, filling, sealing, output



PLC Frequency converter Touch screen  Relay Bearing
Siemens Siemens Siemens Weidmuller NSK
Video

This packaging machine offers exceptional flexibility and efficiency, handling bag widths ranging from 50 mm to 300 mm, fill volumes from 10 g to 5,000 g, and capable of high-speed packaging at speeds exceeding 40 bags per minute. The machine features a 10-inch touchscreen interface with an intuitive interface for easy operation, while the compact, floor-mounted electrical cabinet saves space and facilitates mobility. Furthermore, the machine supports flushing and maintenance, with a built-in water tank, making cleaning and maintenance easy and convenient.

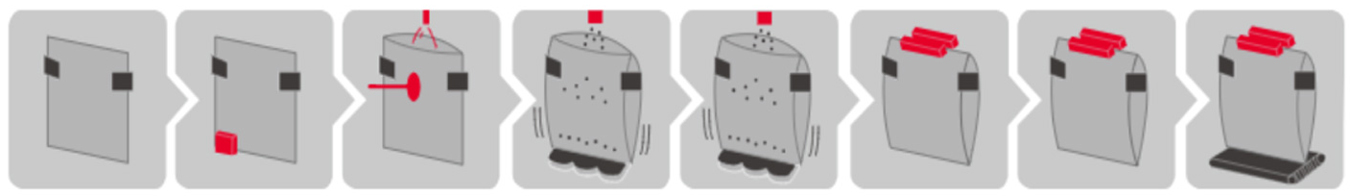

Packaging Process



  • Bag Loading   — The premade pouch is automatically picked from the bag magazine, preparing it for filling.
  • Bag Opening — The bag opening is made using a suction cup or mechanical device to ensure the pouch is fully open.

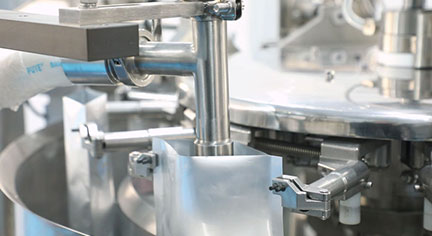

  • Filling —  The required material is accurately filled into the pouch.
  • Bag Closing — The bag opening is closed, ensuring it is neat and even.
  • Sealing - The bag is sealed using heat sealing or clamping to ensure it is securely closed
Industry

Our horizontal premade pouch packing machine is designed for a wide range of packaging applications, including:

  • Liquids: Beverage, juice, detergent, shampoo, paste, tomato sauce, mayonnaise, soup, oil, and more.
  • Powders: Detergent powder, milk powder, flour, cocoa powder, coffee, fertilizer, and other powders.
  • Granules: Snacks like nuts, dried fruits, cookies, chips, candy, chocolate, grains, pickles, noodles, coffee beans, pet food, frozen food, seafood, meat products, cooked food, and more.

This premade pouch packing machine offers flexibility for various industries, ensuring efficient packaging across different material types.

FAQ about Fully automatic rotary premade pouch packing machine
What is the delivery time for your machine.
Estimated 20-40 days.
What is the material of your machine?
Normally 304 stainless steel, if required, can be 316 stainless steel.
What material can your machine pack?
The range is quite wide, liquid,granule, powder, bulk, all okay, liquids such as beverage, juice, detergent, shampoo, paste, tomato sauce, mayonnaise, soup, oil etc; packing powder for detergent powder, milk powder, flour, cocoa powder, coffee, fertilizer etc, packing granule for snacks such as nuts, dried fruits, cookies, chips, candy, chocolate as well as grains, pickles, noodles, coffee beans,medicine, hardware, pet food, frozen food, sea food, meat products, cooked food.
What kind of package is suitable for your machine?
Many kinds of premade pouch, like self standing pouch, zipper pouch, flat pouch, eight-side sealed pouch etc.
