Automatic Vacuum Pouch Packing Machine

Name: Automatic Vacuum Pouch Packing Machine
Brand: 默认品牌
SKU: 00003
Rating: 4.9 (52 reviews)

WHZK10-16-1218，WHZK10-12-1724，WHZK10-12-1724，WHZK8-10-3040

Fully Automatic Rotary Vacuum Packing Machine

Function:	The vacuum packing capacity is greatly increased compared with traditional single chamber vacuum packing machine by applying up to 16 vacuum chambers to achieve continuous vacuum packing automatically.
Application:	automatic vacuum packing machine is mainly applied for the packing production of nuts, cooked food, frozen food, preserved food, eggs, pickles etc.
Material:	Powders, granules, liquids, and other materials.

Bag Width Range:	55-120mm
Bag Length Range:	80-180mm
Filling weight:	3000kg
Max Speed:	up to 100 bags per minute

Get a inquiry

Download

Description

This packaging machine uses a sturdy mechanical transmission structure and food-grade stainless steel 304/316 material, which is durable and stable, with a service life of more than 15 years. The equipment can pack more than 80 bags per minute, achieving double production capacity with a single machine, effectively saving production line space. Simple operation, support for convenient programming and friendly human-machine interface, easy to use and maintain daily.

Video

This packaging machine offers exceptional flexibility and efficiency, handling bag widths ranging from 50 mm to 300 mm, fill volumes from 10 g to 5,000 g, and capable of high-speed packaging at speeds exceeding 40 bags per minute. The machine features a 10-inch touchscreen interface with an intuitive interface for easy operation, while the compact, floor-mounted electrical cabinet saves space and facilitates mobility. Furthermore, the machine supports flushing and maintenance, with a built-in water tank, making cleaning and maintenance easy and convenient.

Packaging Process

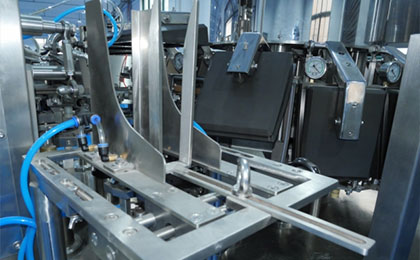

Bag Loading - Automatically pick up the premade pouch from the bag magazine.

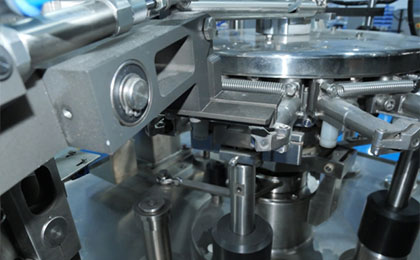

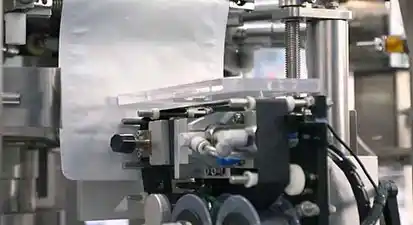

Date Coding - Print the production date or batch number on the bag.Bag Opening - Use suction cups or mechanical devices to open the bag mouth, ensuring it is fully opened.
Filling - Accurately fill the material into the bag.
Secondary Filling/Stirring - Use the stirring device to ensure even material distribution in the bag.
Bag Mouth Cleaning - Clean the bag mouth to ensure no residue remains, preparing it for sealing.
Reserved Position - Reserve space for the next vacuum sealing process.

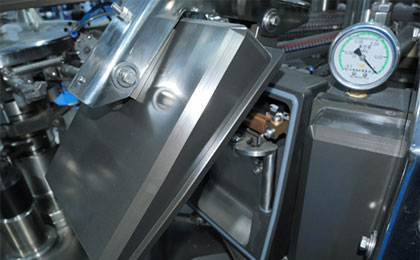

Transfer to Vacuum Chamber - Move the bag into the vacuum chamber for vacuum packing.
Vacuum Sealing - Complete the vacuum packing and sealing, ensuring the bag is airtight to prevent contamination.

Industry

The vacuum packing machine is especially suitable for materials like nuts, cooked food, frozen food, preserved food, eggs, and pickles. It works with flat pouches.

FAQ about Fully automatic rotary premade pouch packing machine

What is the delivery time for your machine?

Estimated 20-40 days.

What is the material of your machine?

Normally 304 stainless steel, if required, can be 316 stainless steel.

What material can your machine pack?

The range is quite wide, liquid,granule, powder, bulk, all okay, liquids such as beverage, juice, detergent, shampoo, paste, tomato sauce, mayonnaise, soup, oil etc; packing powder for detergent powder, milk powder, flour, cocoa powder, coffee, fertilizer etc, packing granule for snacks such as nuts, dried fruits, cookies, chips, candy, chocolate as well as grains, pickles, noodles, coffee beans,medicine, hardware, pet food, frozen food, sea food, meat products, cooked food.

What kind of package is suitable for your machine?

Many kinds of premade pouch, like self standing pouch, zipper pouch, flat pouch, eight-side sealed pouch etc.

Model	WHZK10-16-1218	WHZK10-12-1724	WHZK10-10-2430	WHZK8-10-3040
Working stations	10 stations	10 stations	10 stations	8 stations
Suitable package	Aluminum bags, nylon bags etc.	Aluminum bags, nylon bags etc.	Aluminum bags, nylon bags etc.	Aluminum bags, nylon bags etc.
Bag size	W: 55-120mm L: 80-180mm	W: 80-170mm L: 80-240mm	W: 140-240mm L: 100-300mm	W: 140-300mm L: 100-400mm
Packing speed	80-100 bags/min	60-75 bags/min	40-45 bags/min	30-40 bags/min
Power	5.5KW	4.5KW	4.5KW	6KW
Dimension	2500mm x 1500mm x 1600mm	2500mm x 1500mm x 1600mm	2640mm x 2030mm x 1800mm	2510mm x 1600mm x 1600mm
Weight	3000KG	3000KG	3200KG	3000KG
Air consumption	0.6m3/min	0.6m3/min	0.8m3/min	0.8m3/min

STANDARD CONFIGURATIONS
PLC	Frequency Converter	Touch Screen	Solenoid Valve	Bearing
Siemens	Siemens	Siemens	FESTO	IKO/IGUS
